Product Details
Description
Made in America, Talley Manufacturing’s Weatherby Mark-V Accumark Picatinny Rails, for Magnum calibers (9-Lug receivers) , are machined entirely from high grade 7000 series alloy and protected with a hard-coat anodizing to 65 Rockwell ensuring the craftsmanship of these Picatinny rails last the lifetime of your firearm. These Weatherby Mark-V Accumark Picatinny Rails are all designed and manufactured with precision to fit your firearm with the industry’s tightest manufacturing tolerances. These Pic Rails provide a mounting platform for all optics mounts that have been designed in accordance with the MIL-STD-1913 Pic Rail specifications, to include all Talley Picatinny scope mounts.
Designed for long range shooting, the Weatherby Mark-V Accumark 20 MOA Picatinny rail has an optional integral Ant-Cant Indicator in the rear of the Picatinny rail. By incorporating this bubble level into the Pic Rail itself we have eliminated the potential risk of inducing a cant that can occur from improperly mounting a separate bubble level device.
Whether you are looking for a tactical scope ring, a modern sporting ring or our traditional scope ring with a Picatinny mounting system, Talley MFG has Pic Rails for all applications and firearms enthusiast.
Weatherby Mark-V Accumark Picatinny Rails are available in 0 and 20MOA
- American Made, Lightweight 7000 series Aluminum Alloy
- Fully CNC Machined
- Hard-coat anodizing to 65 Rockwell
- Designed in accordance with the MIL-STD-1913 Pic Rail specifications
- Available in long and short action / 0 and 20MOA.
- 20MOA Models available with Anti-Cant Indicator
- Includes mounting screws and wrench. (1/4 6-48 Screws / T-15)

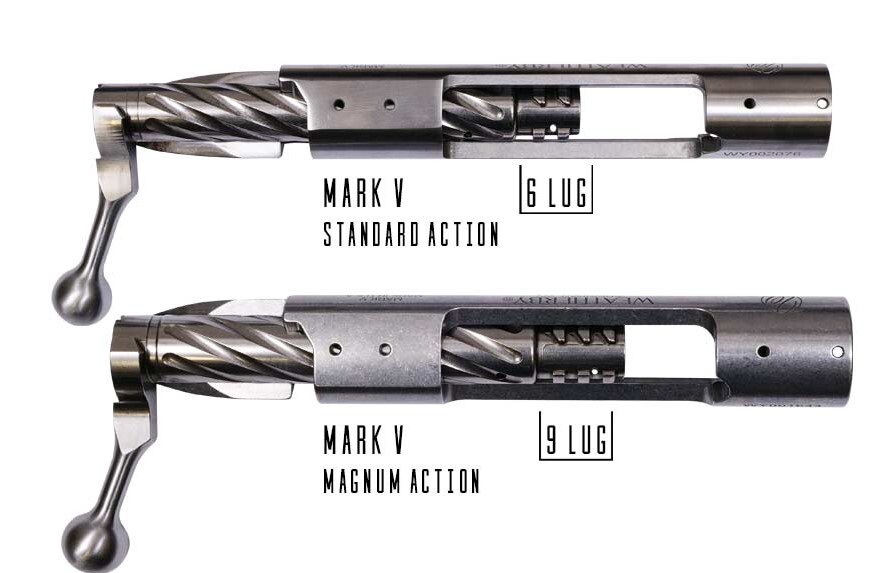

- This is for Magnum length Actions / 9-Lug Receivers. Does not fit Non-Magnum Actions/ 6-Lug Receivers.
- Click here for all Weatherby options
Weatherby MK-V 9 Lug Picatinny Rail – Product Dimensions and Weights
MOA | Rear Height1 | Hole2 1 ↔ 2 | Hole 2 ↔ 3 | Hole 3 ↔ 4 | Front Height3 | Overall Length | Weight |
Standard | .580″ | .600″ | 4.48″ | .860″ | .451″ | 7.026″ | 2.3oz. |
20MOA | .580″ | .600″ | 4.48″ | .860″ | .417″ | 7.026″ | 2.3oz. |
1 The height is measured at hole 1; from the top of the action to the top of the rail.
2 Hole 1 is closest to the shooter and hole 4 is closest to the muzzle. Hole spacing measured center to center.
