Transform your Remington 700 with the XLR Industries Element4.0 Magnesium Chassis! Lightweight and durable, it offers superior stability and customization.

Goes with this

Complete the build

Overview

Ultra-lightweight magnesium Remington 700 chassis at 16 oz

The XLR Industries Element 4.0 Magnesium is an ultra-lightweight modular hunting chassis for Remington 700 short and long actions. Machined from AZ61A Magnesium, the chassis weighs 16 oz and reaches 28 oz when paired with a carbon fiber buttstock and grip. It features an integrated AICS detachable box magazine system, a 1.5 inch Arca-Swiss rail in the forend, and a built-in bubble level. Order by action length, and note that buttstock, grip and magazines are sold separately.

16 oz bare chassis

Machined from AZ61A Magnesium and configured with carbon fiber buttstock and grip, the system weighs 28 oz. This is the first rifle chassis system in the world to weigh under 2 lbs in a complete configuration.

Integrated AICS DBM system

The chassis includes an integrated detachable box magazine system that accepts AICS pattern magazines. Magazines are sold separately.

1.5 inch Arca-Swiss rail in the forend

RRS-compatible 1.5 inch dovetail machined into the forend allows quick-release scope mounting and accessory rails.

Multi-point radial cut inlet

The inlet is cut with XLR's multi-point radial design, so no V-block or glass bedding is required. Bedding is not necessary.

M-LOK compatible

The chassis accepts M-LOK accessories on the sides and bottom for accessories, tactical rails and bipod mounts.

Bubble level integrated

A built-in bubble level is machined into the chassis to ensure a level platform when setting up.

Specifications

Weights

Bare chassis16 oz
With carbon buttstock and grip28 oz

Build

MaterialAZ61A Magnesium
Trigger guardMinimalist design for detachable magazines
Magazine systemIntegrated AICS DBM
InletMulti-point radial cut
Bedding requiredNo
M-LOK compatibleYes
Bubble levelBuilt-in

Forend & Rails

Forend railRRS 1.5 inch Arca-Swiss dovetail
Forend width1.61 inch
Magwell to end of forend12 inch
Recoil lug to end of forend10.75 inch

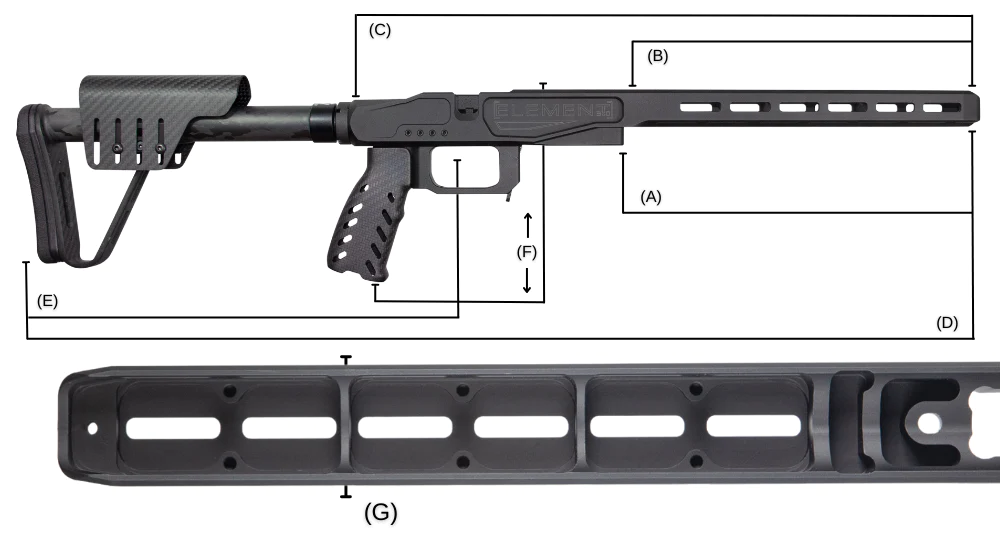

Dimensions

Overall chassis block length20.25 inch
Overall chassis length (min to max)29.5 to 32.5 inch
Bottom grip to top of chassis6 inch (varies by grip)

Length of Pull

Fixed short12.5 inch
Fixed short with folder14 inch
Fixed long13.75 inch
Fixed long with folder15.25 inch

Compatibility

ActionsRemington 700 short action and long action
MagazinesAICS pattern, sold separately
GripsAR style flat top compatible
ButtstocksAR style, with possible modification for molded-in designs

Fitment

Will it work with your build?

Works with

  • Remington 700 short action and long action receivers
  • Remington 700 footprint clones
  • AICS pattern detachable magazines
  • AR style flat top grips and buttstocks
  • RRS 1.5 inch Arca-Swiss accessories

Will not work with

  • Tikka T3/T3x actions (XLR makes separate Element 4.0 Magnesium for those)
  • Savage 110 actions (XLR makes separate Element 4.0 Magnesium for those)
  • Long Action CIP cannot use 3.065 inch magazine length
  • Magpul PRS buttstock (molded-in anti-rotation dowels may require modification)

Buttstocks, grips and magazines are sold separately. The chassis weighs 16 oz bare; final weight depends on your choice of buttstock and grip. Long Action CIP accepts magazines up to 3.850 inch length. Magpul PRS and similar buttstocks with molded-in anti-rotation dowels may require modification to fit. Chassis are oversized and do not qualify for free shipping.

Detail

Fitting it and the fine print

Do I need to glass bed the chassis?

No. The Element 4.0 Magnesium features XLR's multi-point radial cut inlet design, which eliminates the need for V-block or glass bedding. The chassis is ready to drop an action in place.

Which action length do I order, short action or long action CIP?

Order Short Action for Remington 700 short action receivers. Order Long Action CIP (3.850 inch Magazine Length) for Remington 700 long action receivers or long action clones. The CIP designation refers to the maximum AICS magazine length this inlet accepts.

What buttstocks and grips will fit?

The chassis accepts AR style flat top grips and AR style buttstocks. Some buttstocks with molded-in anti-rotation dowels, such as the Magpul PRS, may require modification to fit. Buttstocks, grips and magazines are sold separately and not included with the chassis.

What is the final weight of a complete setup?

The bare chassis weighs 16 oz. A complete system with carbon fiber buttstock and carbon fiber grip weighs 28 oz. Your final weight depends on your choice of buttstock and grip. The XLR Industries website offers a weight calculator tool to help you configure your setup.

Bare chassis
16 oz
With carbon components
28 oz
Material
AZ61A Magnesium
Forend rail
1.5 inch Arca-Swiss
Magazine system
AICS DBM integrated
Bedding required
No

Works with

  • Remington 700 SA and LA
  • Rem 700 clones
  • AICS pattern magazines

Will not work with

  • Tikka T3x or Savage 110
  • CIP over 3.850 inch length
