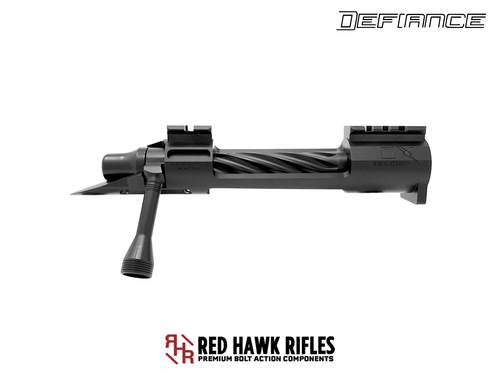

Defiance Machine - Ti X Action

Defiance Machine

Defiance Machine - Ti X Action

$2,095.00
Adding to cart… The item has been added
Ships to a licensed FFL dealer. This product is required to ship to a registered and valid FFL. After checkout, email your dealer’s license to sales@redhawkrifles.com, or call us and we’ll help you find a dealer near you.
Lowest Price
Guarantee
Free Shipping Over $199
Easy Returns 30 days
Secure Checkout

Not sure it fits? Call 1-970-242-6166 — you’ll talk to an expert who works with these parts every day.

Goes with this

Complete the build

Overview

Aerospace-grade titanium action that weighs 16.8 oz short, 17.4 oz medium, or 18.1 oz long

The Defiance Ti X is an all-titanium custom rifle action with an integral scope rail and recoil lug. The receiver is aerospace-grade Ti-6AL-4V titanium machined from a single piece, and the bolt is 4340 chrome moly machined in one operation so that Defiance guarantees headspace to +/- .001". Made to order in short, medium and long action, right or left hand, with a 90 or 75 degree bolt throw and four bolt faces.

16.8 oz, all titanium

A short action weighs 16.8 oz complete, medium 17.4 oz and long 18.1 oz, and that includes the scope rail and recoil lug because both are integral to the receiver.

Aerospace-grade Ti-6AL-4V titanium receiver

One piece machined from aerospace-grade Ti-6AL-4V titanium, with the scope rail and recoil lug integral to the receiver.

Headspace guaranteed to +/- .001"

The bolt is one piece of 4340 chrome moly, and Defiance guarantees headspace to +/- .001 inch. Defiance states that Ruckus style pre-fit barrels work on it, with final fit-up by a gunsmith.

90 or 75 degree bolt throw

Defiance offers the Ti X with a 90 or 75 degree bolt throw; order the throw you want.

Four bolt faces, three lengths

Bolt faces of .390", .480", .550" and .595" cover .223 Rem through .338 Lapua, across short, medium (industry standard medium, formerly XM Plus) and long action, right or left hand.

DLC receiver and nitride bolt, included

Defiance applies Diamond Like Coating to the titanium receiver and black nitride to the bolt, both finished at the factory. No waiting or additional cost.

Specifications

Weights, complete action

Short action (Rem. SA)16.8 oz
Medium action17.4 oz (industry standard medium, formerly XM Plus)
Long action (Rem. LA)18.1 oz
Weighed withReceiver, one-piece bolt, handle and knob, firing pin assembly with aluminum shroud, side bolt release

Receiver

MaterialOne piece of aerospace-grade Ti-6AL-4V titanium with lightening cuts
Recoil lugIntegral
Scope railIntegral
Barrel thread1.0625" x 16 TPI (Rem. 700 diameter and pitch)
Magazine cutAICS and AW patterns (AW on short actions only)
Rear tangStandard

Bolt

MaterialOne-piece 4340 chrome moly, machined in one operation
HeadspaceGuaranteed +/- .001"
Bolt noseStraight (Defiance design)
LugsRecessed
ExtractorMini-16
EjectorPlunger
ShroudAluminum
Firing pinWith spring

Options as ordered

Action lengthShort, medium or long
HandRight or left
Bolt face.390", .480", .550" or .595"
Bolt throw90 or 75 degree
FinishDLC receiver and nitride bolt, included

Included and guarantee

ReceiverWith integral scope rail and recoil lug
BoltOne-piece with Mini-16 extractor and aluminum shroud
Bolt releaseBolt stop and side release, spring and pin
Fire controlFiring pin and spring, cocking piece
Trigger pinsIncluded
GuaranteeDefiance lifetime performance guarantee against cracking, warping or breaking

Fitment

Will it work with your build?

Works with

  • Remington 700 short and long action inlets
  • Medium action: industry standard medium (XM Plus) inlets
  • AICS pattern magazines
  • AW pattern magazines (short action only)
  • Ruckus style pre-fit barrels with a 1.0625" x 16 TPI tenon

Will not work with

  • AW magazines on medium or long action (AW cut available on short actions only)

Made to order. Order the action length, hand, bolt face and bolt throw from the options; Defiance builds the Ti X to that specification.

Detail

Fitting it and the fine print

Which bolt face and action length do I order?

Pick the bolt face by the case head of the cartridge you will chamber, then the action length that carries it:

  • .390": .223 Rem. Short action.
  • .480": standard .308 style bolt face, for .308 Win and cartridges built on its case head. Short, medium or long action.
  • .550": .300 WM, RUM, PRC and SAUM. Short action, medium action, or long action.
  • .595": .338 Lapua. Long action only.

Should I order the 75 degree or the 90 degree bolt throw?

Defiance offers both. The 90 degree throw is the conventional Remington 700 lift; the 75 degree throw lifts the handle 15 degrees less. Defiance's page describes the 75 degree option as giving more clearance under the scope.

Can this ship to my door?

No. The Ti X is a firearm receiver and Red Hawk Rifles transfers it only to a holder of a valid Federal Firearms License. You pick the FFL dealer who will receive it, forward a copy of their license to Red Hawk Rifles after ordering, and complete the transfer at their counter. Dealers usually charge a transfer fee; that fee, and compliance with local, state and federal law, are between you and your dealer.

Short action
16.8 oz
Long action
18.1 oz
Receiver
Ti-6AL-4V titanium
Bolt
4340 chrome moly
Headspace
+/- .001"
Finish
DLC and nitride

Works with

  • Rem 700 inlets
  • AICS and AW magazines
  • Ruckus style pre-fit barrels

Will not work with

  • AW on medium/long action
